1989 Sea Ray 340 Express Cruiser

1989 Sea Ray 340 Express Cruiser
“Straight Up” — Well-Documented History, Recent Survey, Move-In Ready

Offered for sale is Straight Up, a 1989 Sea Ray 340 Express Cruiser with a documented survey history spanning multiple inspections, most recently in July 2023. This vessel has been consistently well-maintained, professionally stored, and shows very well for her age

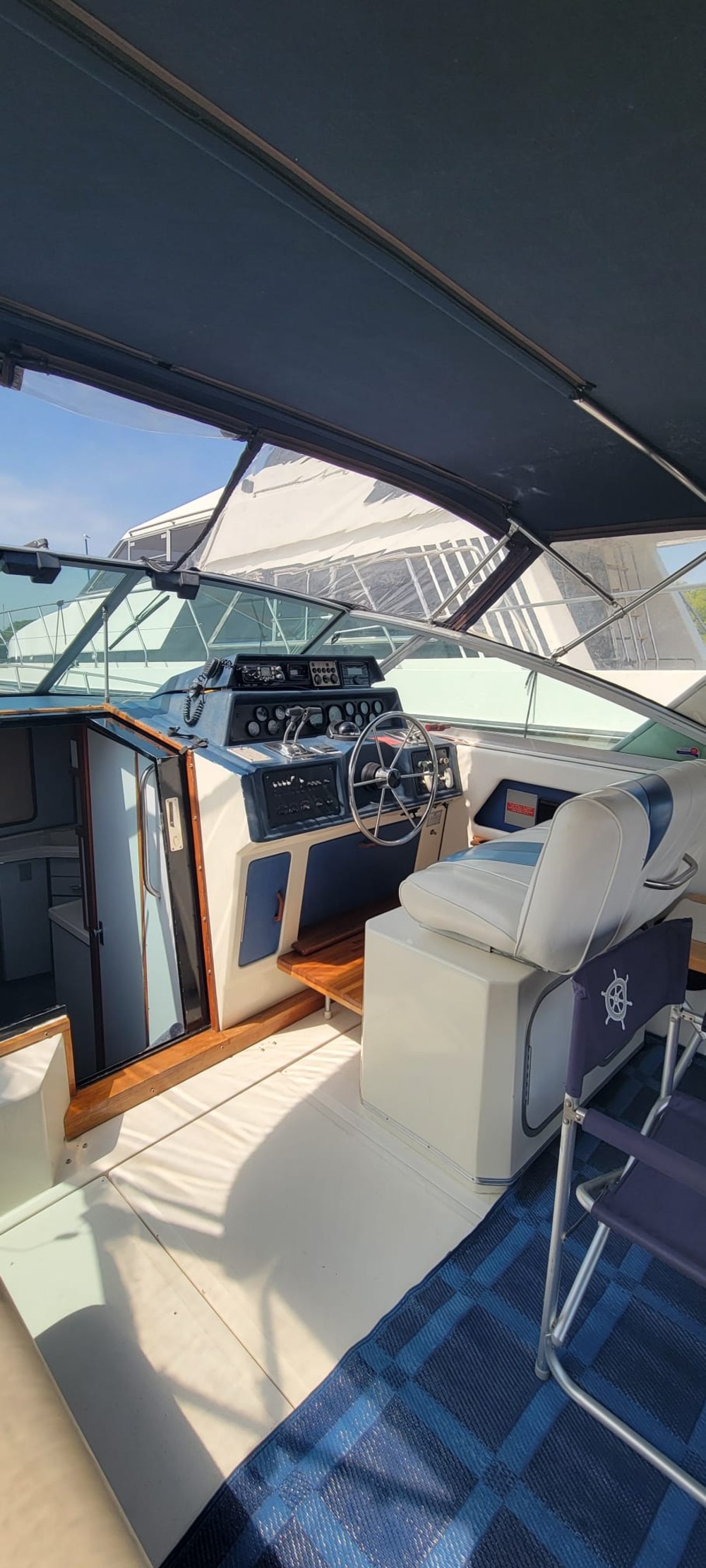

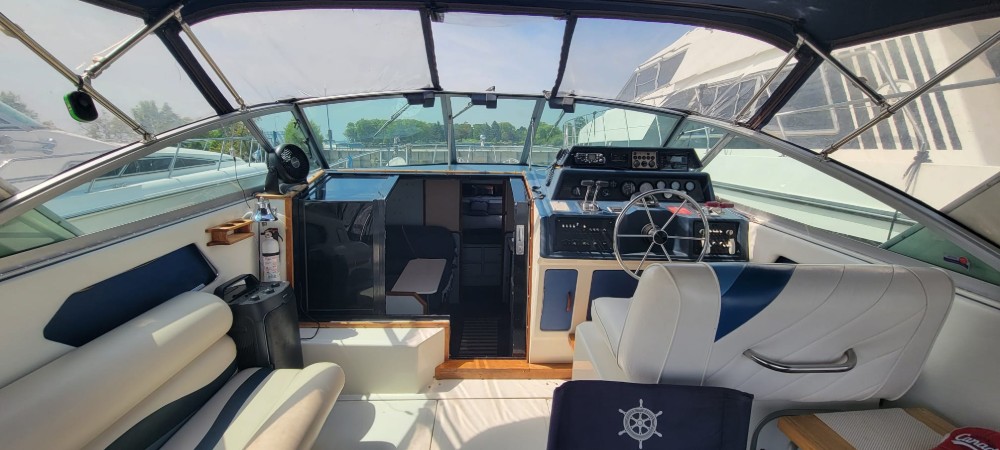

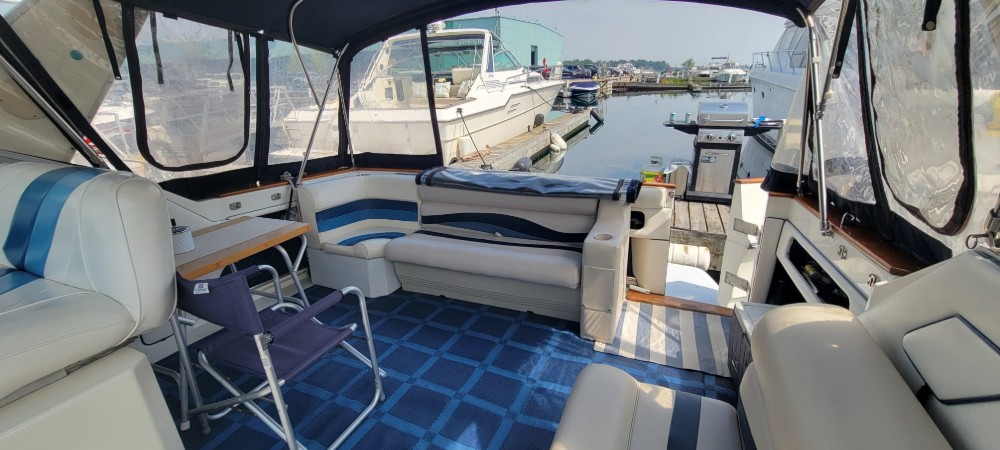

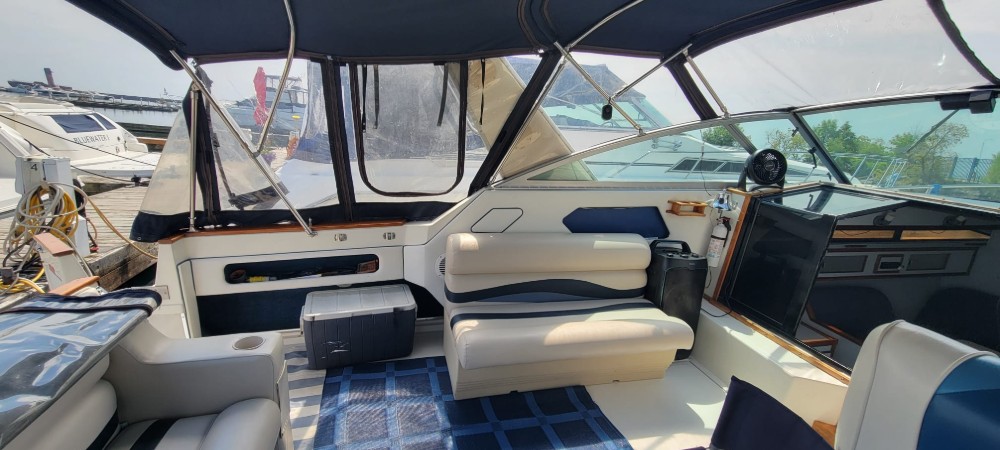

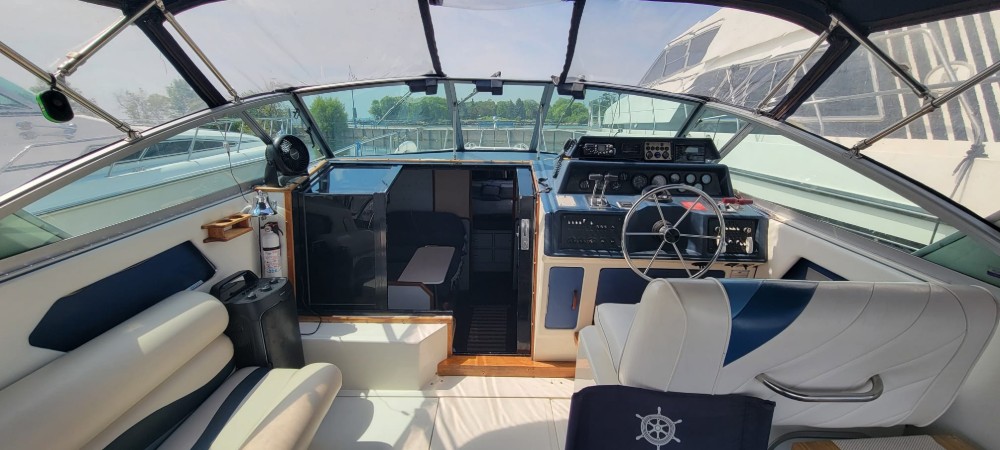

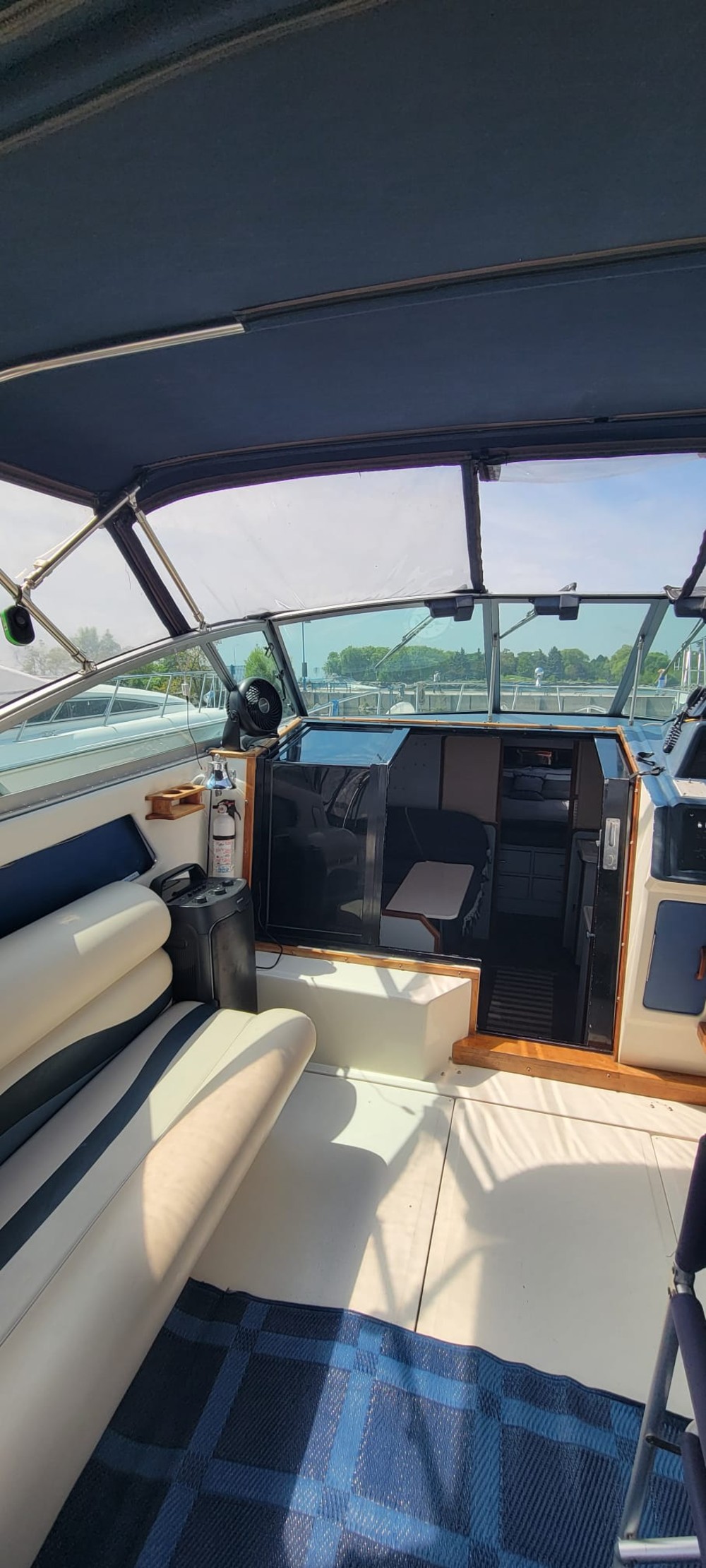

This is a deep-V, hard-chine express cruiser with a large open cockpit and comfortable accommodations below and ideal for day cruising or weekend getaways.

Key Specifications
– LOA: 33’7″ (advertised as 34′)
– Beam: 11’11”
– Draft: 2’5″
– Freeboard: 3’10”
– Displacement: 10,100 lbs / 4,581 kg

Hull, Deck & Structure
– Deep-V, hard chine planing hull with tunnels for shafts (half-moon inverts)
– Hull composed of fiber-reinforced polyester resin (FRP), with plywood and lumber stringers/bulkheads encapsulated in FRP

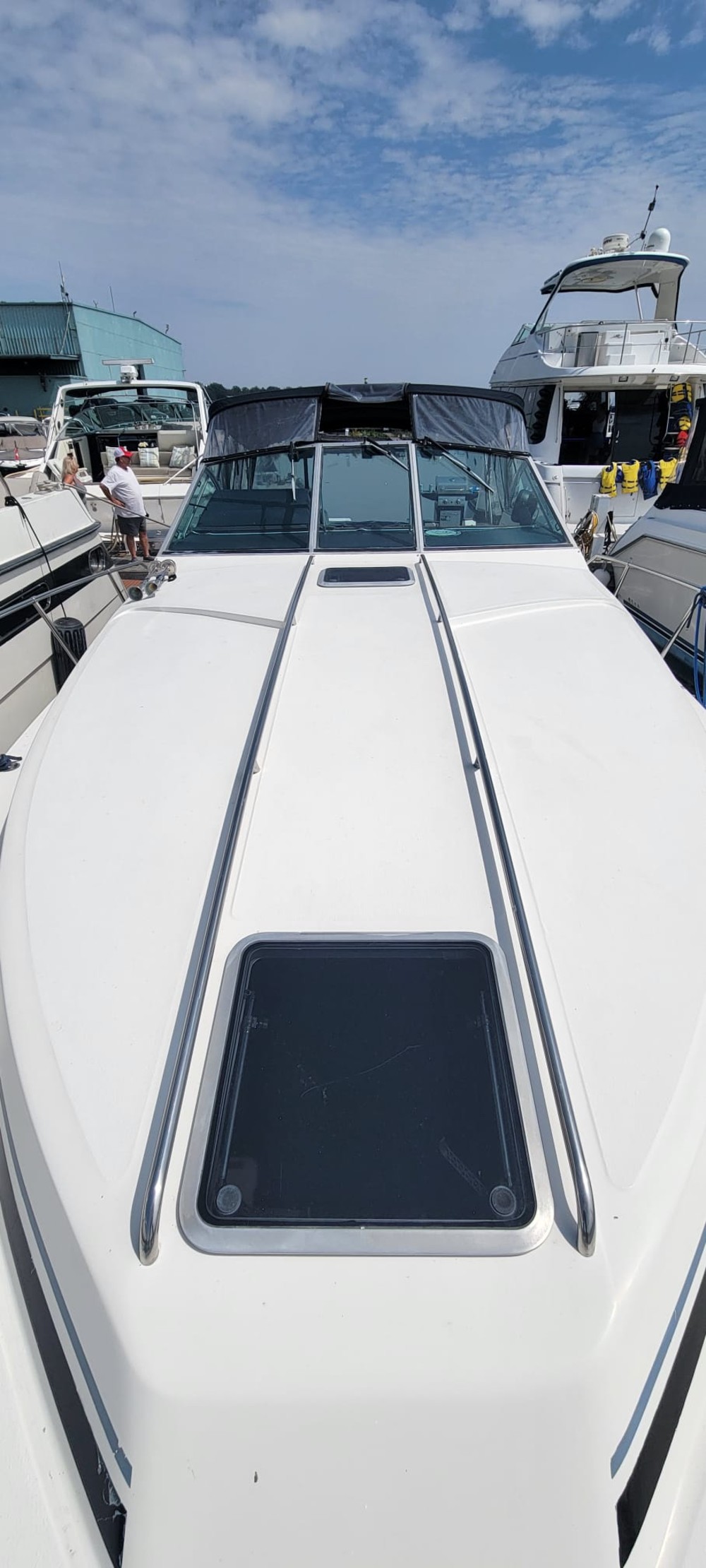

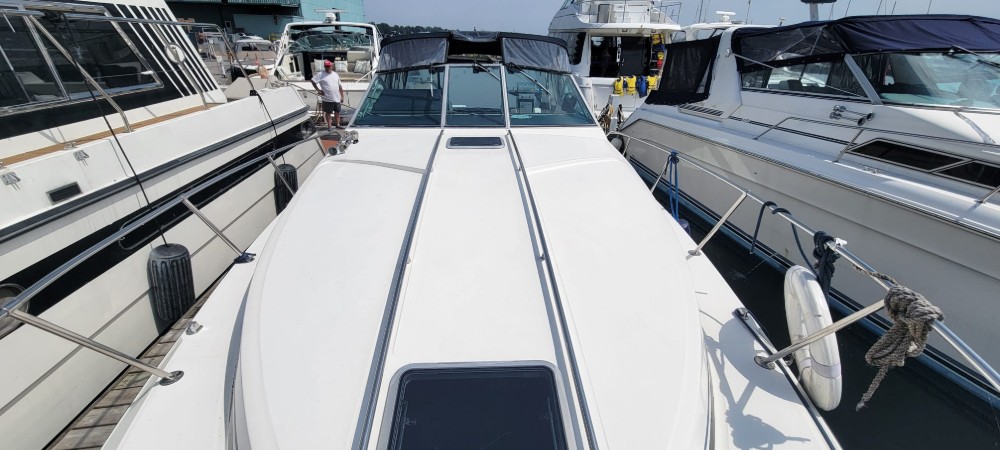

– Decks: cored FRP with non-skid gelcoat finish

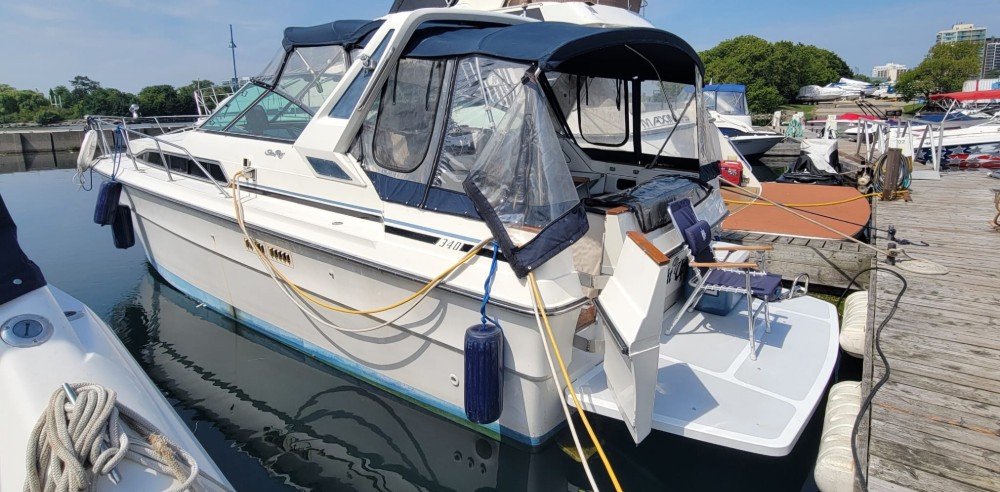

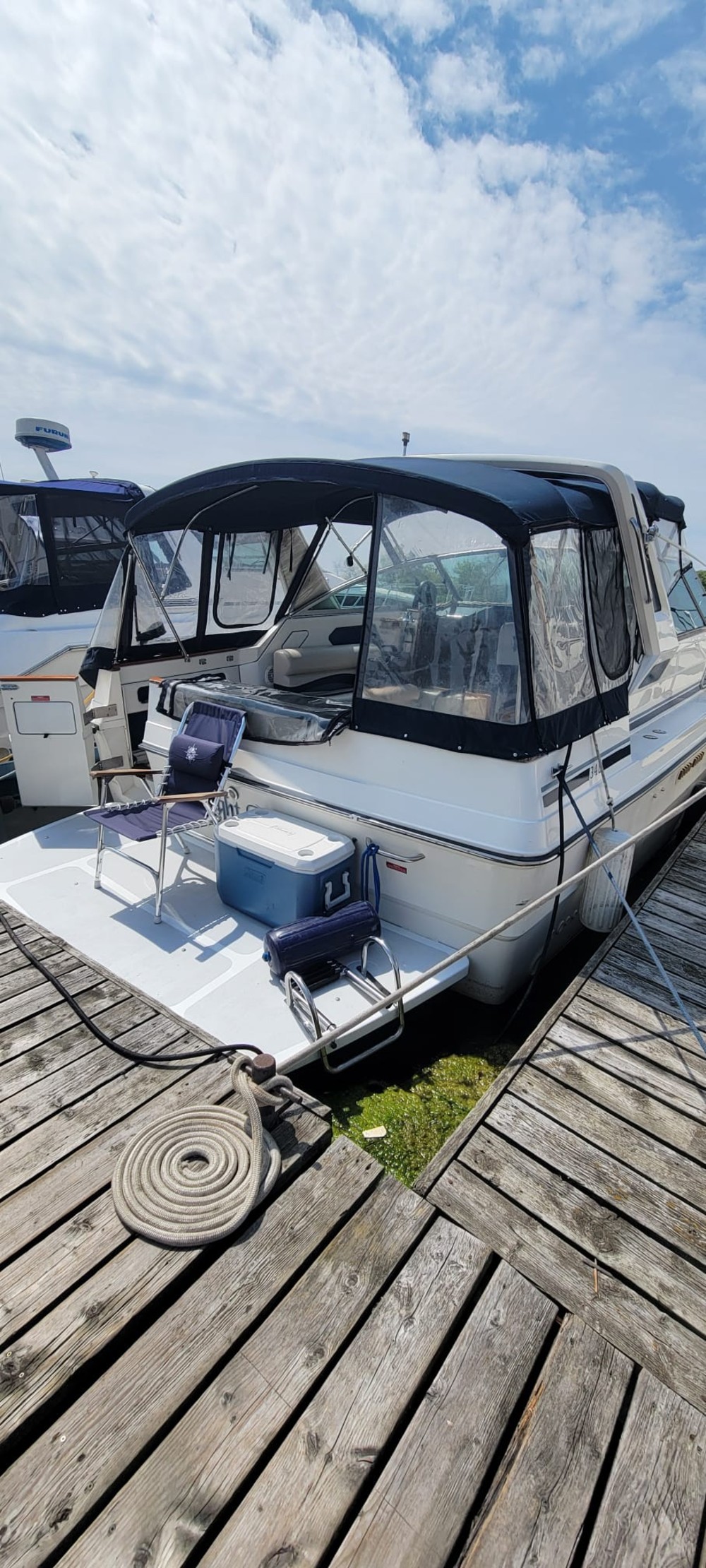

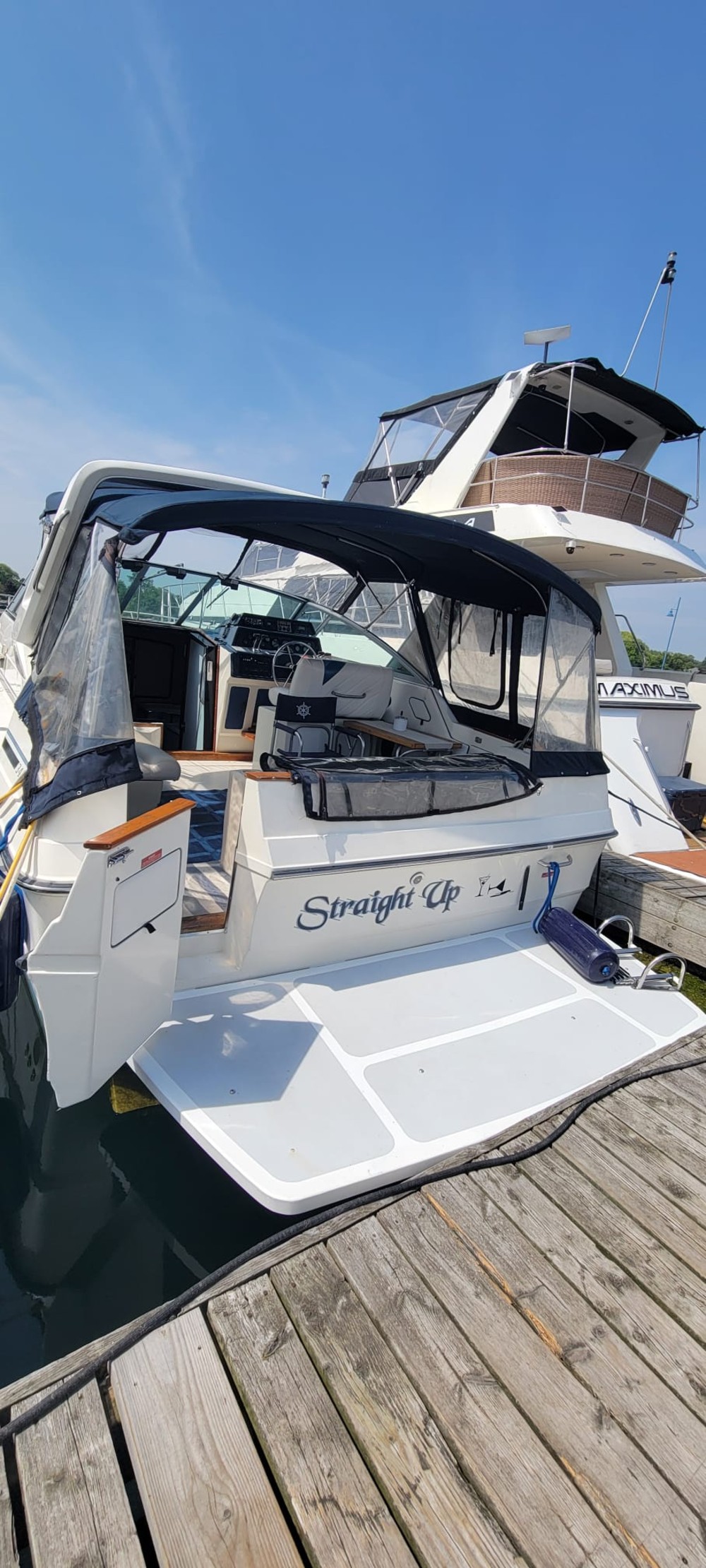

– Swim platform: FRP with wood decorative inserts and metal support structure, integrated walk-through transom
– Hull-to-deck joint: lap-over construction with wood backing, metal fasteners, aluminum cover mould
– All fastenings stainless steel

Power & Propulsion
– Engines: Twin V8 automotive-style engines with carburetors (MCI 7.4L)
– Drives: Mercury/Hurth HSW 630A transmissions with stainless steel shafts (no pitting or corrosion noted)
– Struts: Bronze, thru-bolted
– Rudders: Bronze blade-type with stainless steel posts
– Cooling: Raw water cooling via engine-driven impeller pumps, bronze intake strainers and seacocks

Fuel, Water & Waste Systems
– Fuel Tanks: 2 aluminum tanks (~125 US gal each, ~250 gal total), Coast Guard certified, externally vented, filled from port/starboard cockpit
– Waste Tank: 20-gallon plastic holding tank, starboard side aft of engine
– Fresh Water: Tank mounted below main cabin sole
– Water Heater: Attwood EHM6SM, mounted to port behind fuel tank

Electrical Systems
– AC System: 120VAC via 30-amp twist-lock shore connection; main panel with 2x 30A main inlet breakers, 6 load distribution breakers, volt/amp meters, and polarity indicator
– DC System: 12VDC negative ground; 3x Group 27 batteries in trays with hold-downs and terminal covers
– Battery Charger: Professional Mariner 30-amp, 3-bank charger
– Grounding: Dynaplate on transom, bonded to metal fittings and DC ground

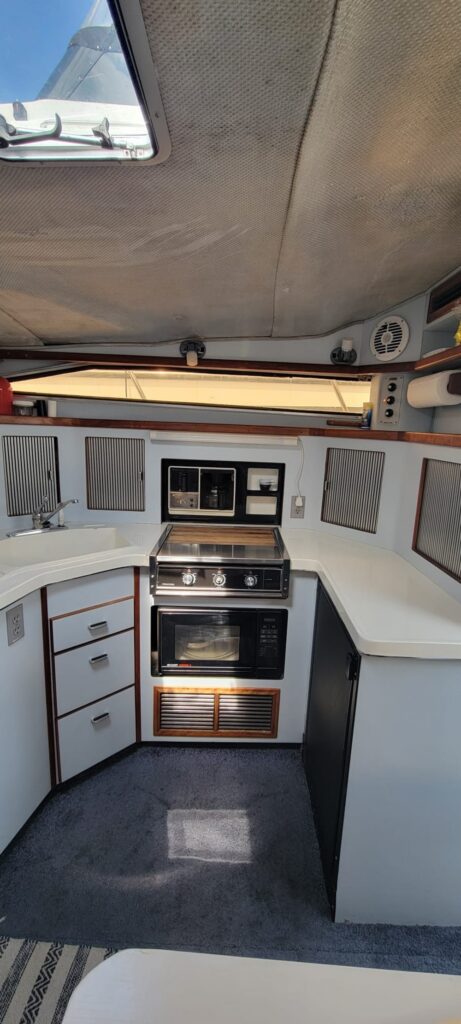

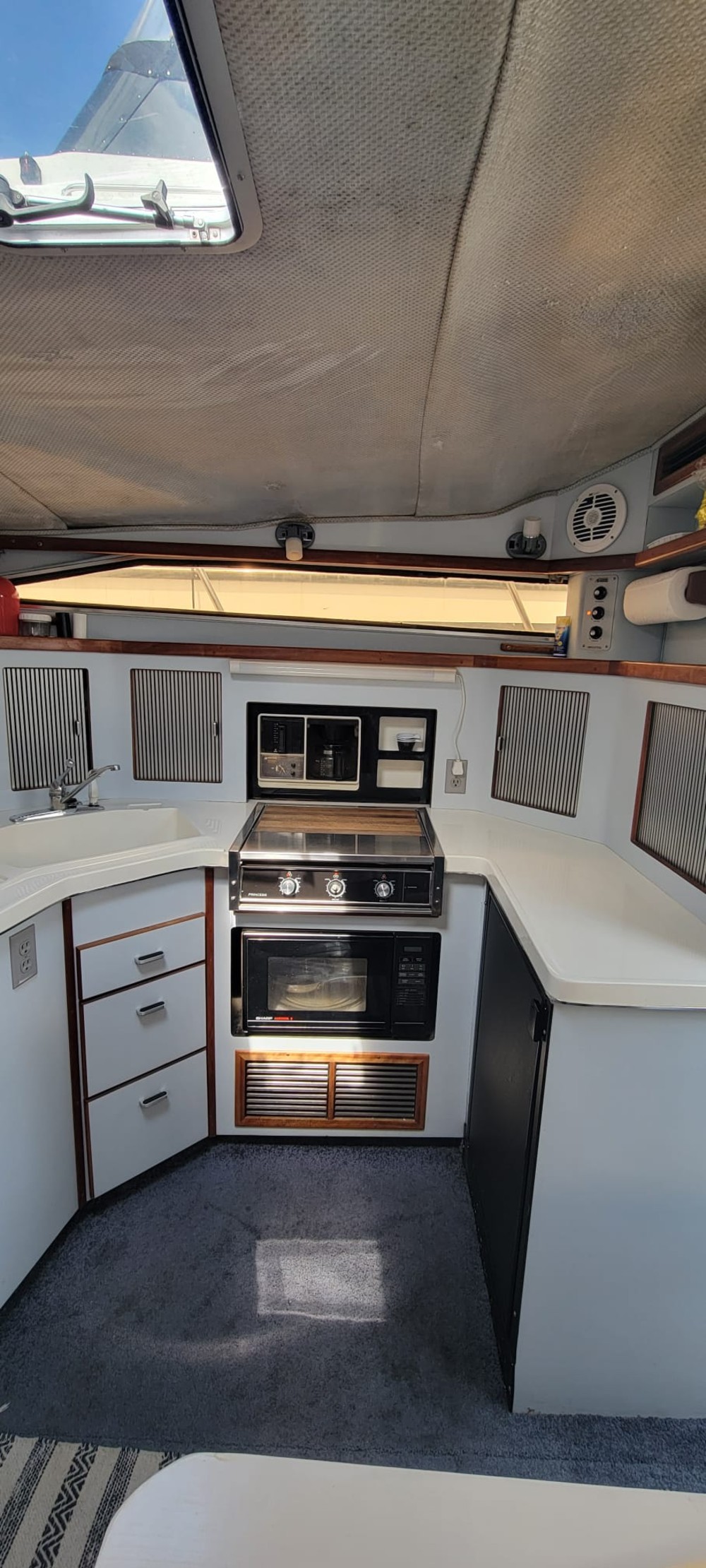

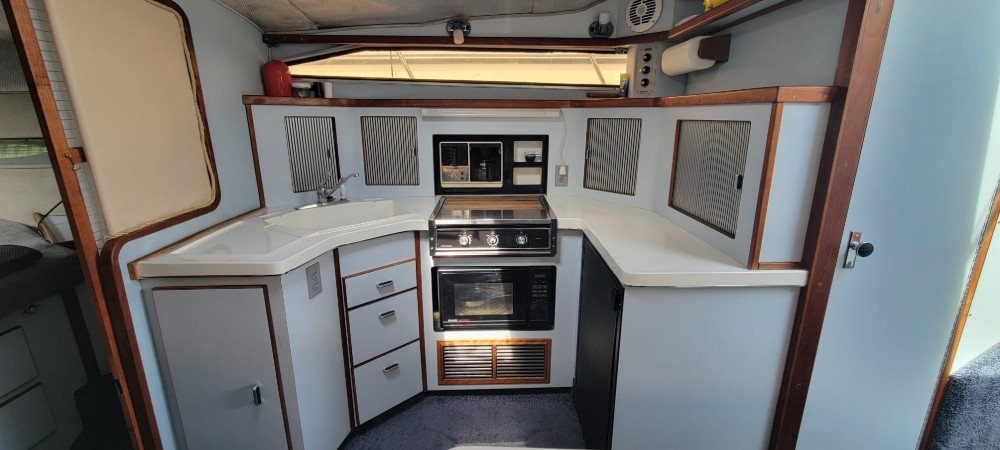

Galley & Interior Comfort
– Cooktop: Princess 3-burner stove top
– Microwave: Sharp Carousel II
– Refrigeration: Norcold Tek II fridge
– Air Conditioning: Marine Air built-in system

Electronics & Navigation
– Sony CDX GT210 AM/FM CD deck with 2 built-in speakers
– VHF radio: Standard Horizon Quest
– Data Marine LX201 depth sounder and LX30 speed/distance instrument
– Ritchie 5″ compass

Layout

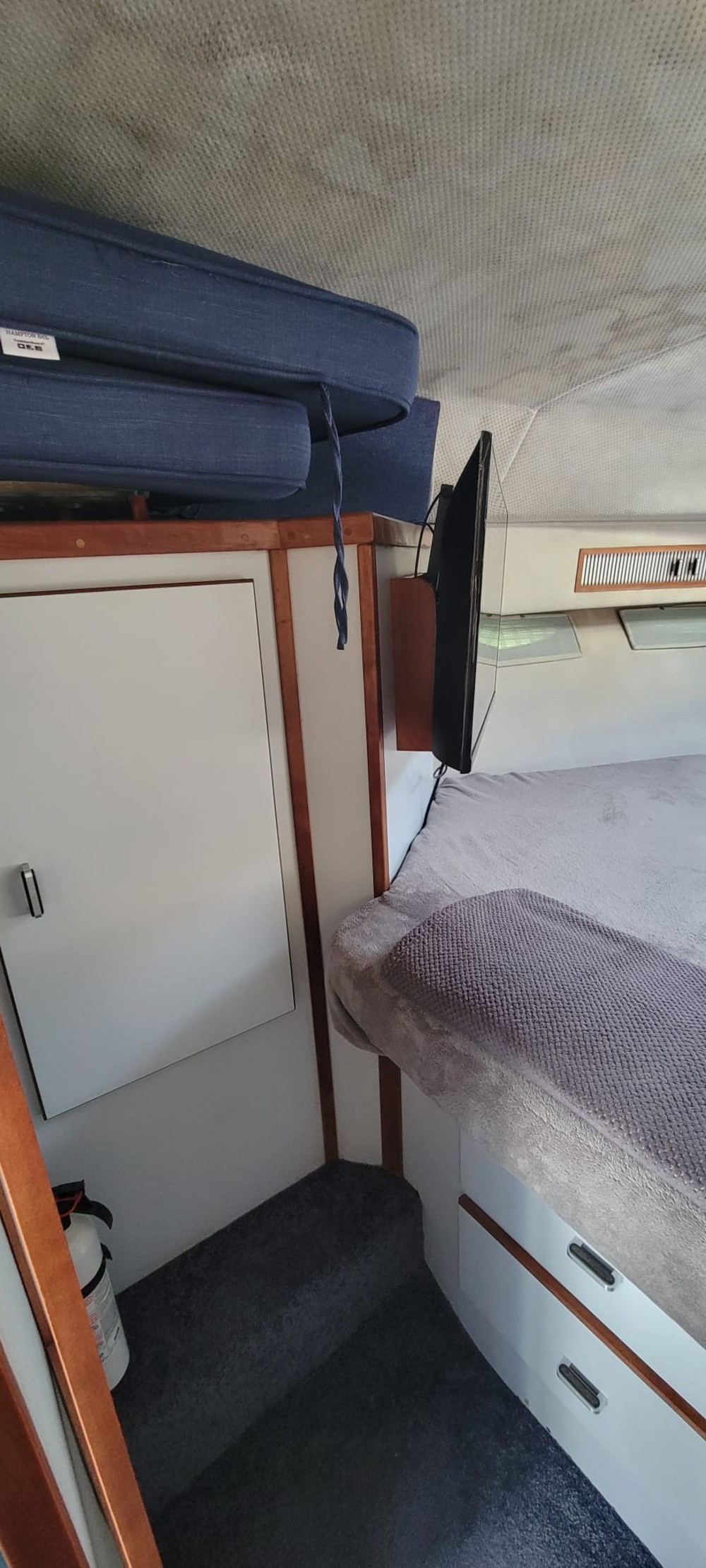

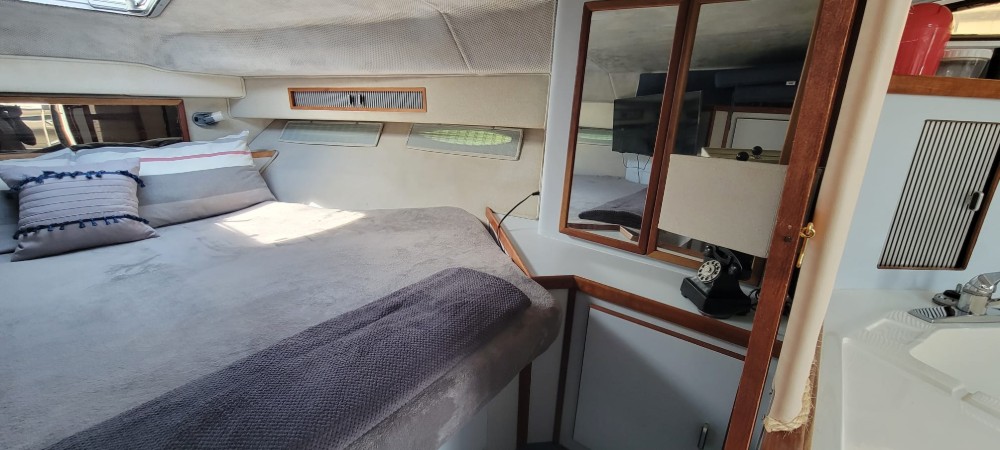

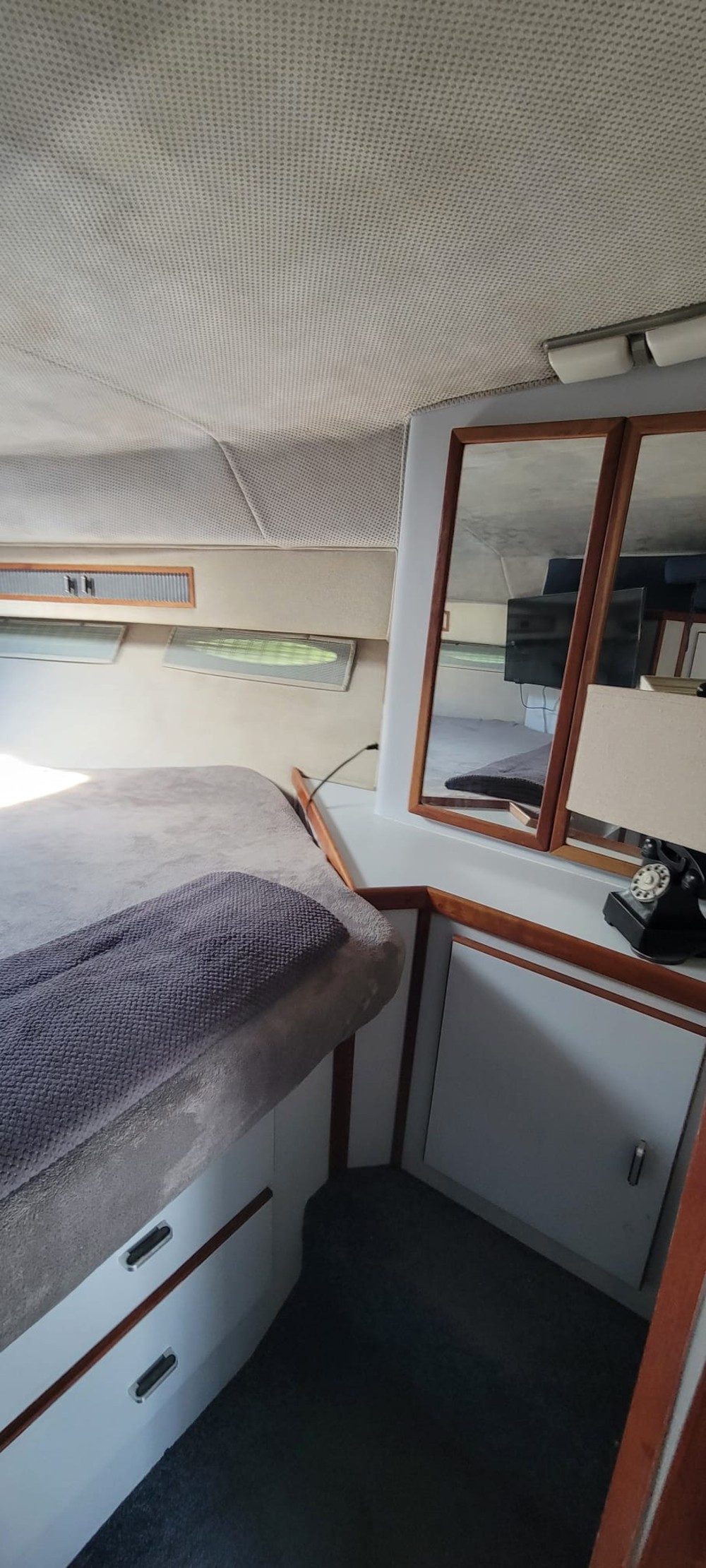

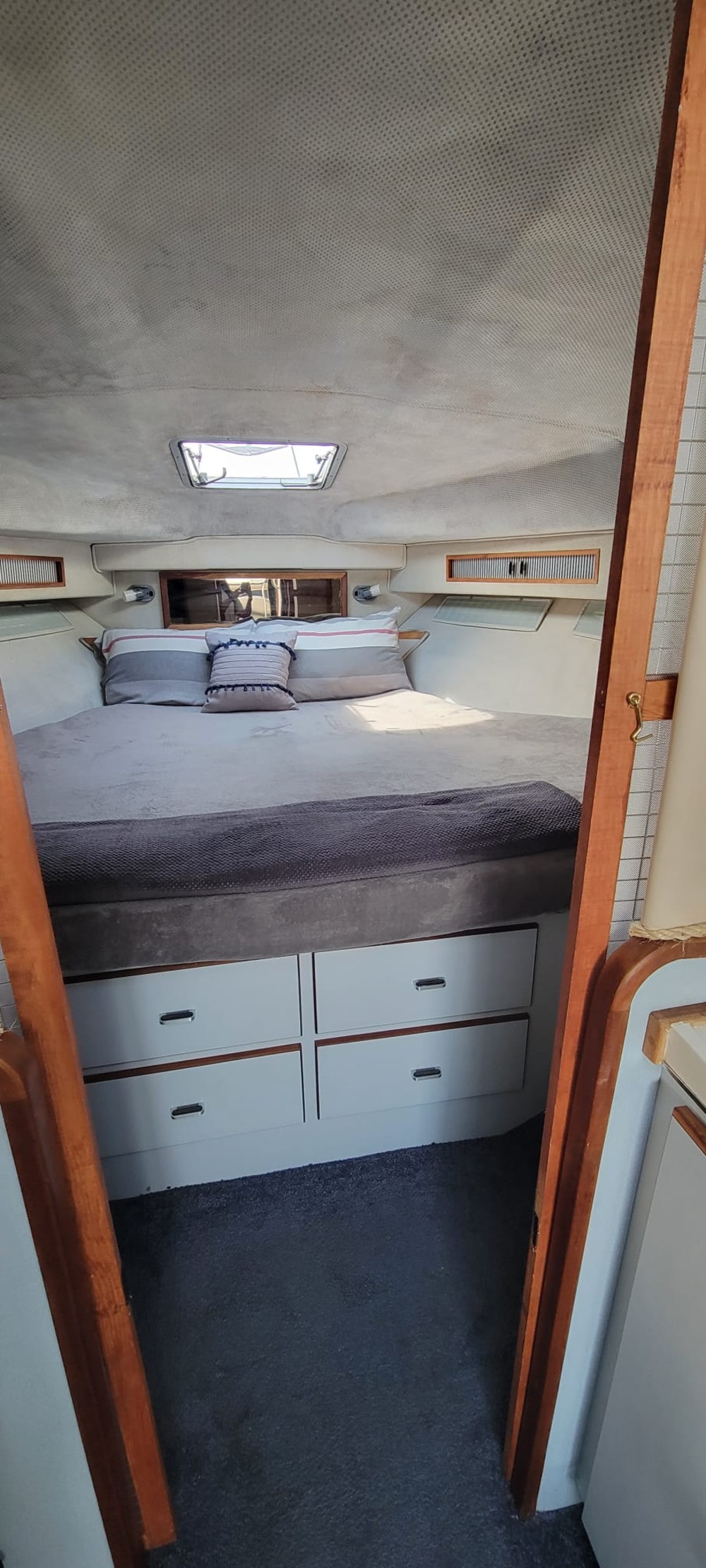

– Forward cabin: V-berth with hanging locker to port, shelving and mirrored locker to starboard

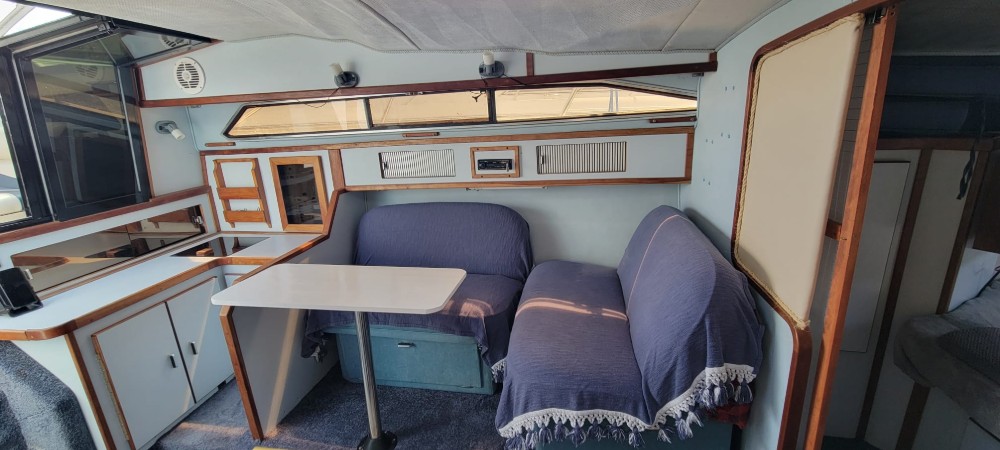

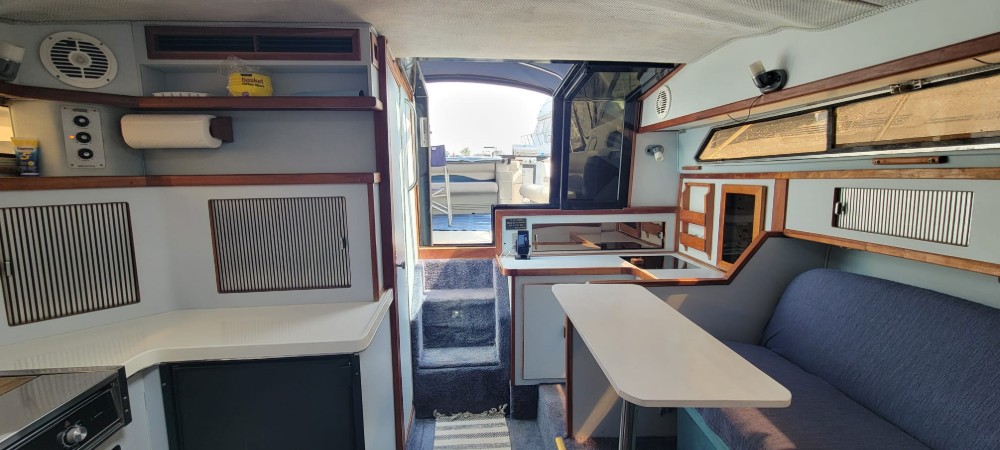

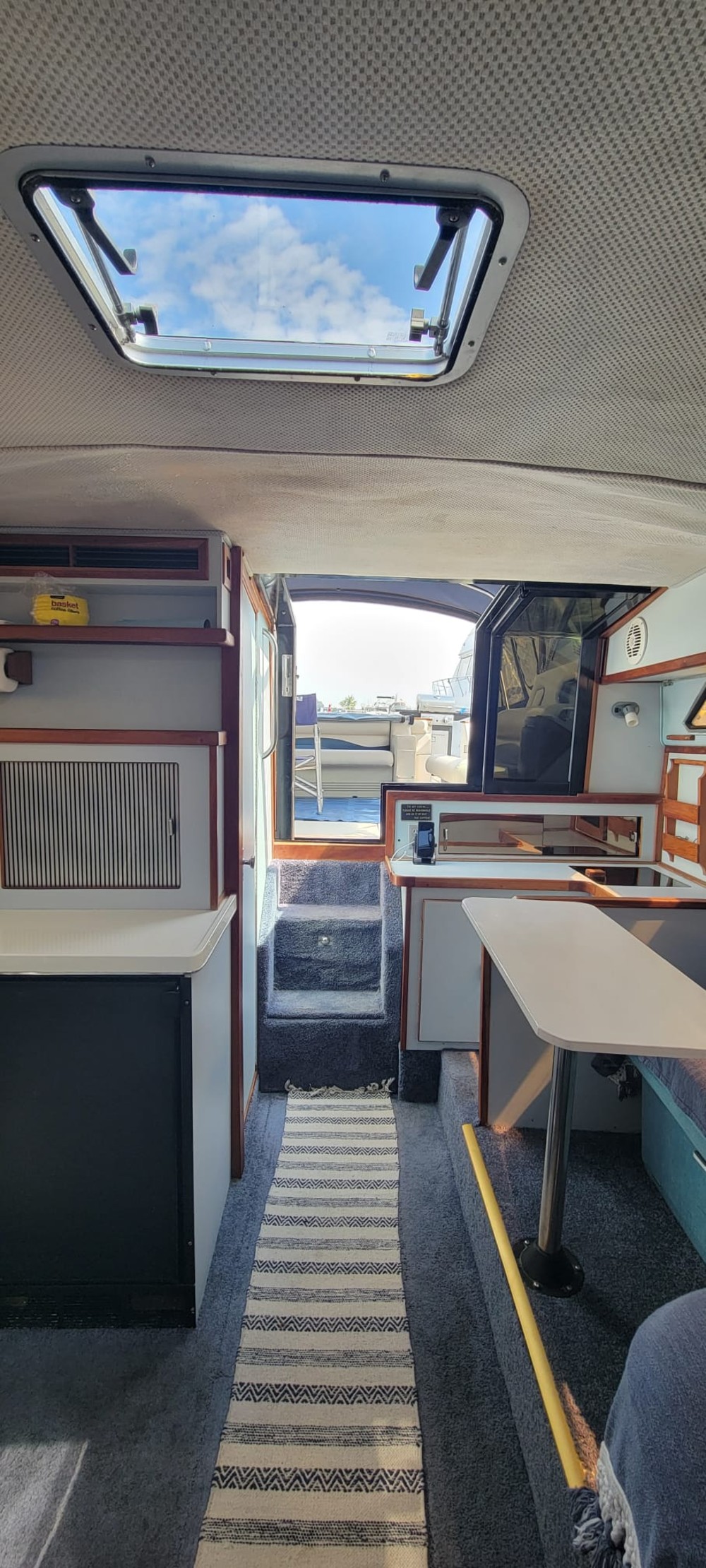

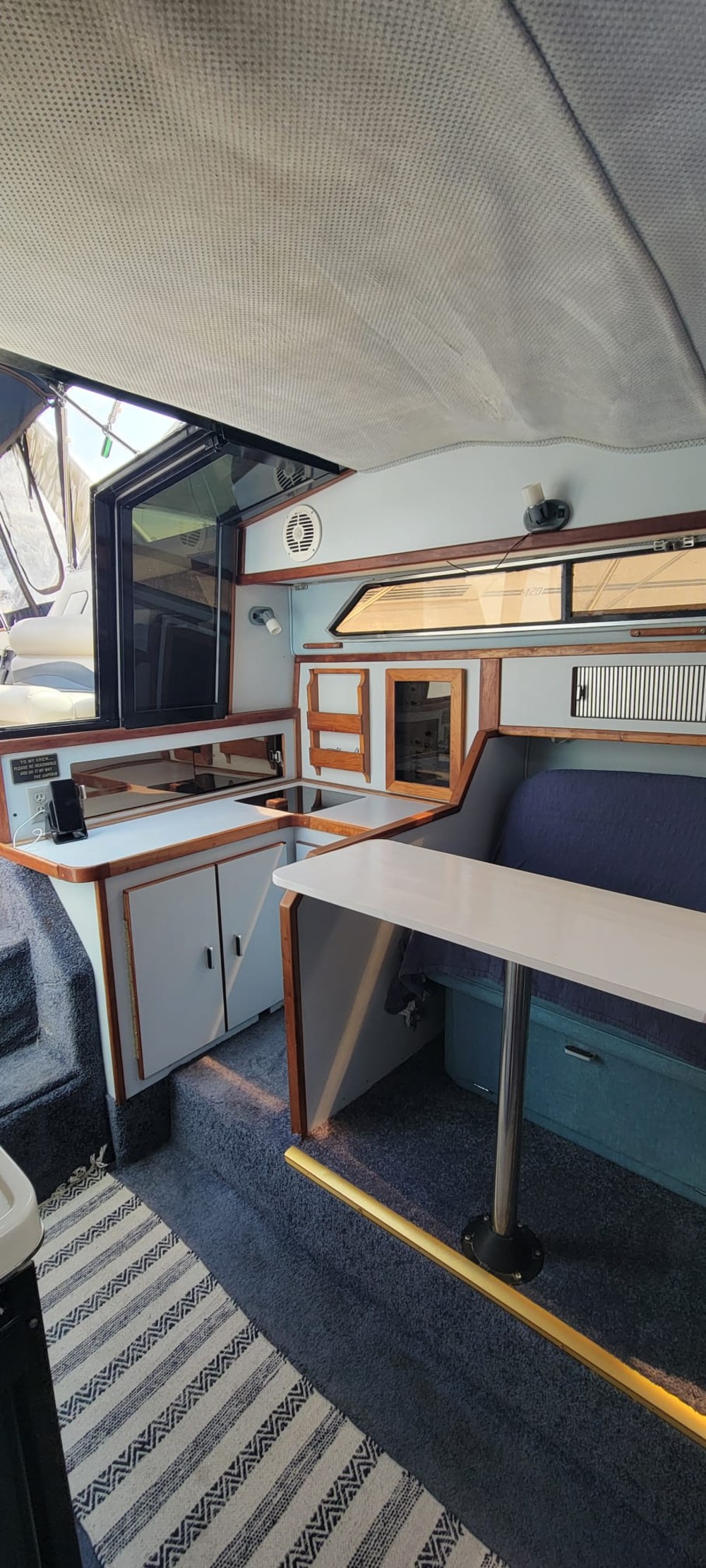

– Main cabin: Berths/settees to port, galley to starboard, small dry storage area aft of settee near companionway

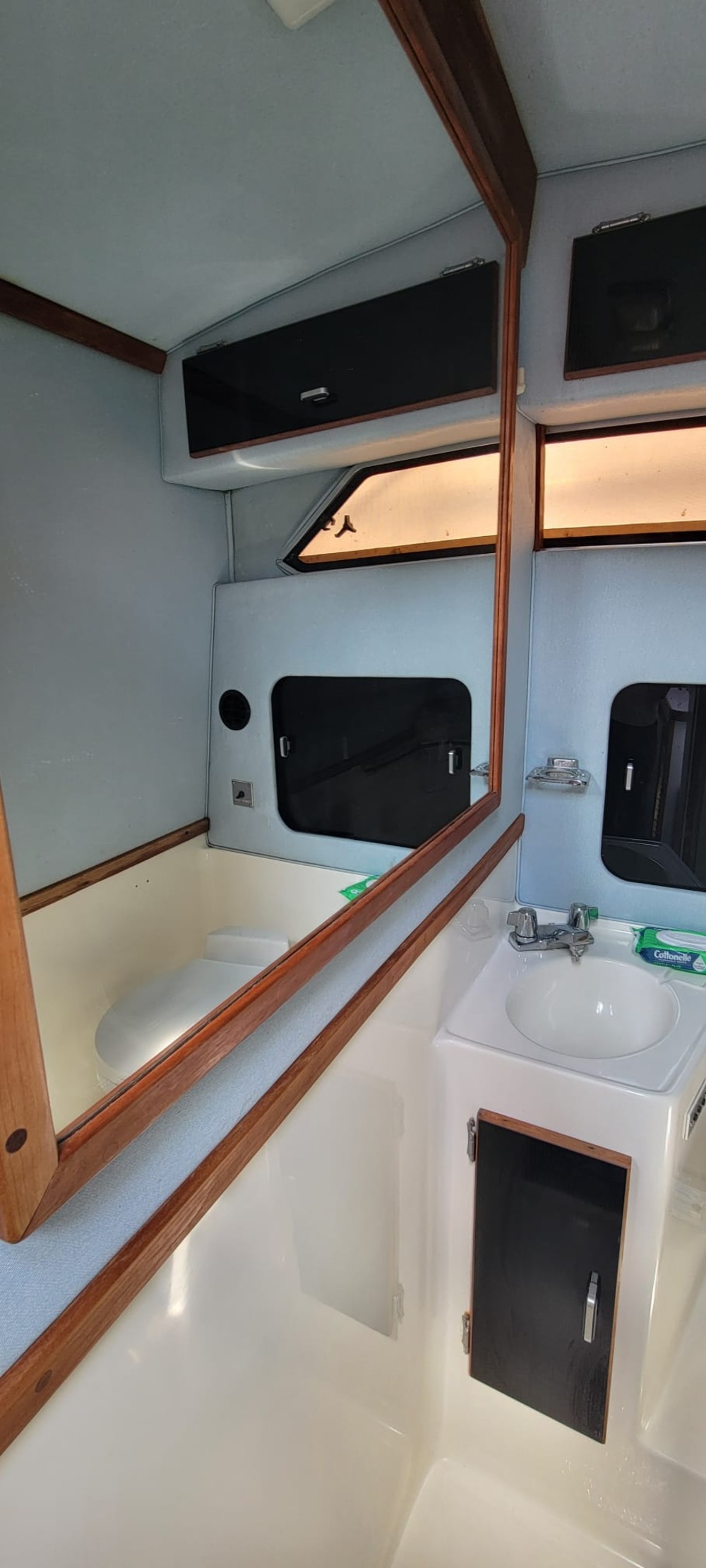

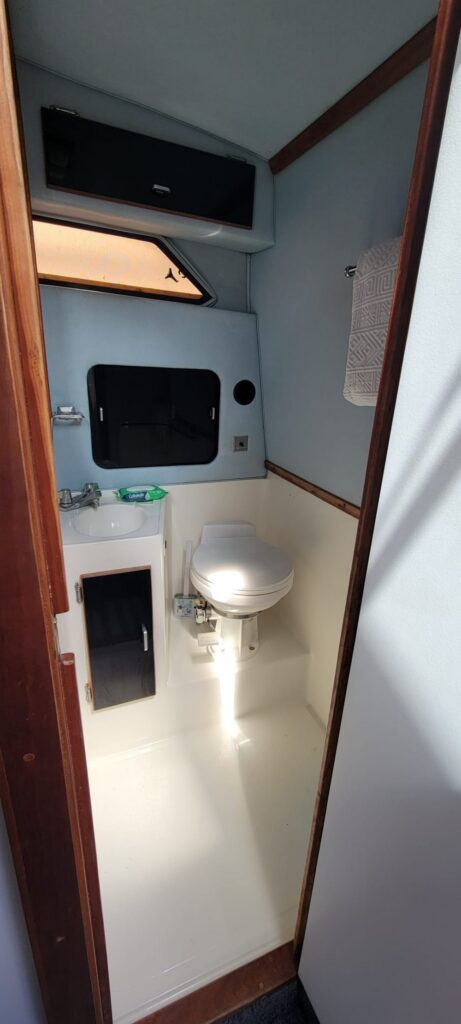

– Head: Located starboard aft

Sea Rays like “Straight Up,” with a clean survey history and consistent care, don’t come around often. Contact us today to schedule your private viewing and make her yours before the season gets away from you.
